Combining significant safety advancements with ease of use
Designed for deep-water and extended-duration projects, our rebreathers provide divers with a reliable, closed-circuit breathing system that minimises gas consumption and maximises operational time.
With decades of expertise and a commitment to innovation, we ensure your diving operations meet the highest standards of performance and safety. Whether you’re working in offshore energy, subsea construction or complex underwater environments, our solutions keep your team breathing easy.
Why partner with JFD?


Advanced technology

Safety at the core

Operational efficiency

Global capability

End-to-end solutions

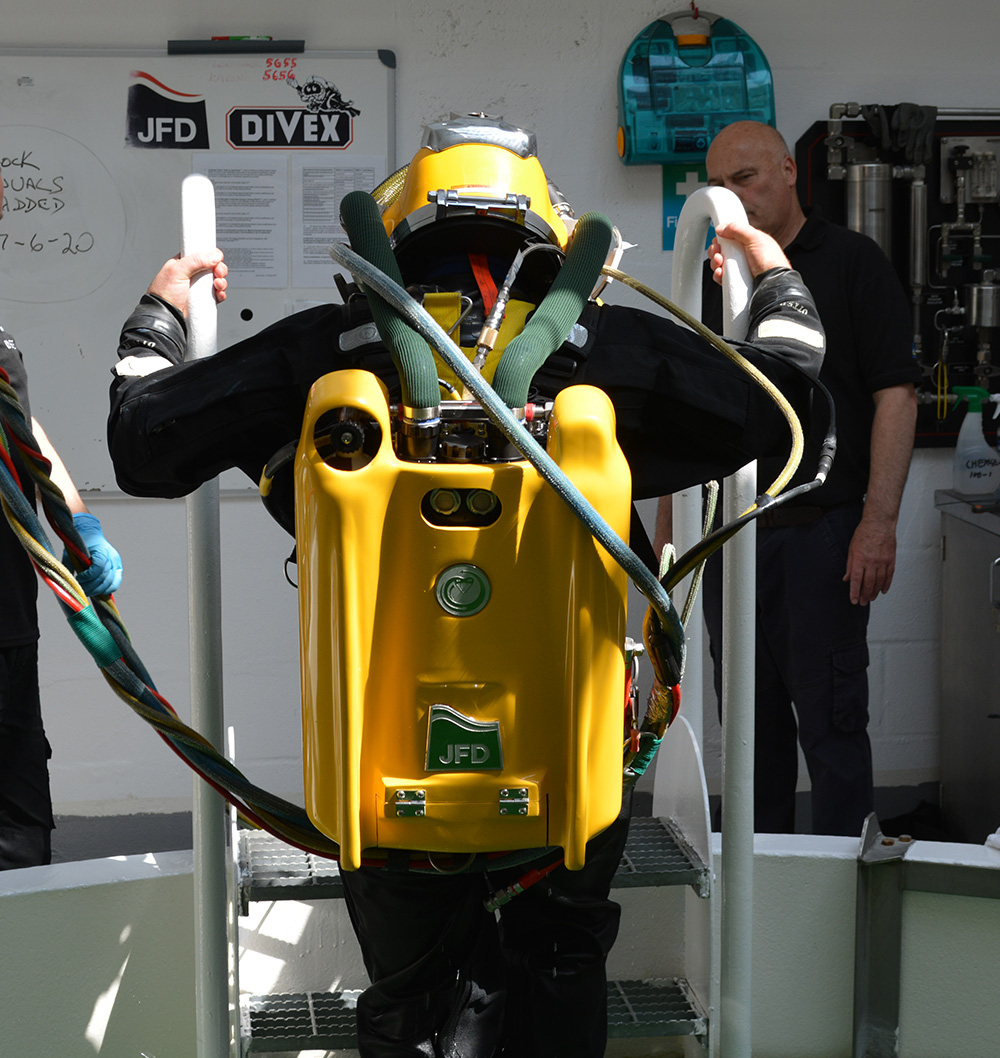

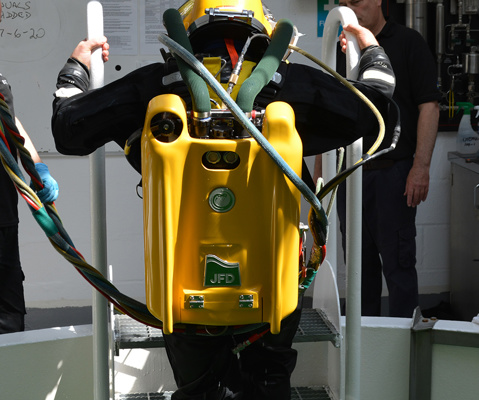

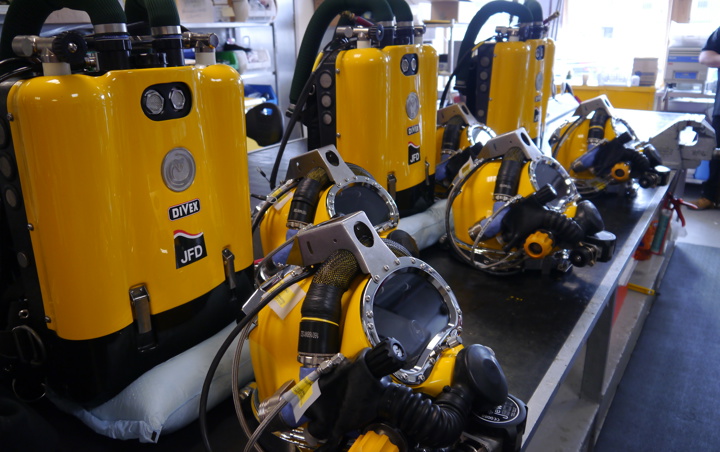

Compact bailout rebreather apparatus (COBRA)
Designed and developed by JFD as part of its DIVEX range of rebreathers, COBRA is a direct and high effectual response to the urgent need for significant safety improvements in the saturation diving industry.
COBRA is the only commercial emergency rebreather system in the world to have been granted CE Marking status to NORSOK U101 (Diving Respiratory Equipment) and EN14143 (Self Contained Rebreathing Apparatus), leading the way in terms of safety and functionality.
The system supplies an extended duration of fully independent breathing gas in an emergency scenario and is designed to be smaller than most bailout systems.
COBRA is a unique bailout system combining significant safety advancements while remaining easy to operate and maintain.
Specifications
|
45 Minutes Endurance |
Supports operations with up to 45 minutes of endurance |
|
Maximum Depth |
Rated for operations at a maximum of depth of 450 meters seawater |
|
Low Work of Breathing |
Designed for efficiency and ease of breathing during use |
|
1 Turn to Breathe |
Simple setup with just one turn to activate breathing |
-
The existing SLS has a "parachute" operation, while the COBRA can be mechanically switched on and off by the diver as a pre-dive check.
-
The COBRA counterlungs are completely encapsulated on the diver’s back.
-
The COBRA uses as easy fill scrubber system for fast, simple change out of sodalime.
-
Increased positive pressure feed to allow more rapid descent.
-
Smaller than existing SLS Mk4 backpack.
-
Composite or steel twin cylinders easily accessible for charging.
-
Single turn activation and no counterlung "ripcord".
-
Safety indicator "rotowink" provides additional assurance of system positive pressure and hence integrity.
- The only commercial emergency rebreather system in the world to have been granted CE Marking status to NORSOK U101 (Diving Respiratory Equipment) and EN14143 (Self Contained Rebreathing Apparatus).
| Category | Document name | Document no | Revision | Upload date | Click to download |
| Datasheet | COBRA (Compact Bailout Rebreathing Apparatus) | DE-MDS-6609 | R2 | 25/10/2017 | |
| Brochure | COBRA (Compact Bailout Rebreathing Apparatus) | DOC-BRO-2 | R0 | 24/10/2018 | |
| Product guidance note | COBRA hot water relief value - interim guidance | DB500-PGN-2 | R0 | 24/05/2019 | |
| Product guidance note | COBRA activation / ascent issues | DB500-PGN-3 | R0 | 27/05/2019 | |
| Product guidance note | COBRA hot water relief valve - spring replacement | DB500-PGN-4 | R1 | 09/07/2019 | |
| Product guidance note | COBRA - user queries / practices | DB500-PGN-5 | R0 | 17/06/2019 | |
| Product guidance note | COBRA replacement hoses | DB500-PGN-6 | R0 | 21/06/2019 | |
| Product guidance note | COBRA - general guidance based on user feedback | DB500-PGN-7 | R0 | 30/09/2019 | |
| Product guidance note | Fitting of COBRA scrubber | DB500-PGN-9 | R0 | 12/03/2020 | |
| Product guidance note | COBRA duration at shallow depths - interim guidance | DB500-PGN-10 | R0 | 22/04/2020 | |
| Product guidance note | COBRA replacement of incorrect mounting screws | DB500-PGN-11 | R0 | 06/08/2020 | |
| Product guidance note | COBRA Advisory Notice Hot Water Housing Upgrade | DB500-PGN-13 | R0 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Notice Hot Water Hose Spigot | DB500-PGN-14 | R1 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Notice Head Exhaust Valves | DB500-PGN-15 | R0 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Notice Composite Cylinder | DB500-PGN-16 | R1 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Notice Pre-use procedures | DB500-PGN-17 | R0 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Handle Manifold becoming loose | DB500-PGN-18 | R0 | 22/11/2021 | |
| Product caution notice | COBRA Safety notice | DB500-PCN-1 | R0 | 17/11/2020 | |
| Product caution notice | COBRA Return to Service Notice | DB500-PCN-2 | R0 | 18/11/2021 | |
| Product guidance note | COBRA Advisory Notice Leak at Joint | DB500-PGN-19 | R0 | 26/01/2022 | |
| Product guidance note | COBRA Advisory Notice Setting Positive Pressure | DB500-PGN-20 | R0 | 25/05/2022 | |
| Product guidance note | COBRA Advisory Notice Duration Tables | DB500-PGN-21 | R0 | 22/09/2022 | |
| Product guidance note | COBRA Advisory Notice Top Handle | DB500-PGN-22 | R0 | 01/01/2022 | |
| Product guidance note | COBRA Advisory Notice Various Minor Items | DB500-PGN-23 | R0 | 07/06/2023 | |
| Product guidance note | COBRA Advisory Notice Breathing Hose Guidance | DB500-PGN-24 | R0 | 07/06/2023 | |
| Certificate | EU Declaration of Conformity | P2177-DC-1434 | R12 | 14/05/2026 | |
|
Operators Manual |
COBRA Mark 2 |
DB500-OM-6750 |
R8 |
04/06/2026 |
| Item | Order code |
| COBRA 2.0 LITRE 300 BAR COMPOSITE CYLINDERS BACKPACK | DB5002040 |
| COBRA 3.0 LITRE 232 BAR STEEL CYLINDERS BACK PACK | DB5002041 |
| HELMET, COBRA, 17C, C/W INTERFACE & ULTRAJEWEL 601 | DB500HA |
| HELMET, COBRA, 17C, VARIANT 1 | DB500HZ |

Gaspure and Helipure chamber gas recovery systems
Delivering safe removal of chamber gas, JFD’s industry leading Divex gas reclaim systems deliver the highest standards of safety during diving operations, whilst ensuring optimum helium gas reclaim to reduce operating costs.
Diver acceptance, simplicity, rugged construction, quality components, reliability, combined with availability of spares and service make Divex reclaim systems second to none.
Incorporating such well known products like the electric gasmizer diver gas recovery system, the gaspure chamber gas recovery system, and the helipure membrand separation system, JFD can confidently claim to be innovators in diving gas recovery.

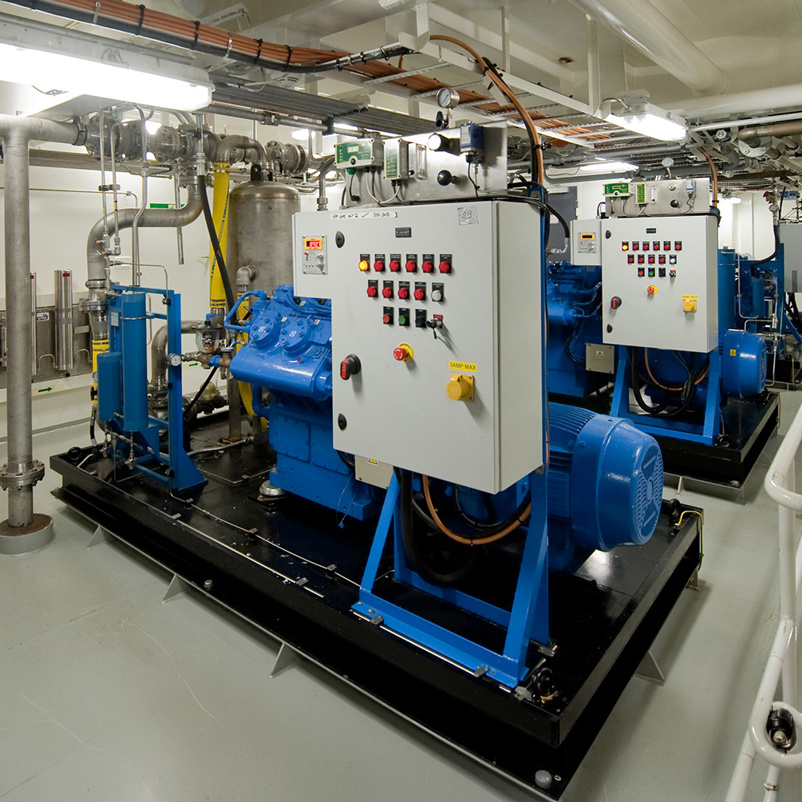

Gaspure chamber gas recovery systems

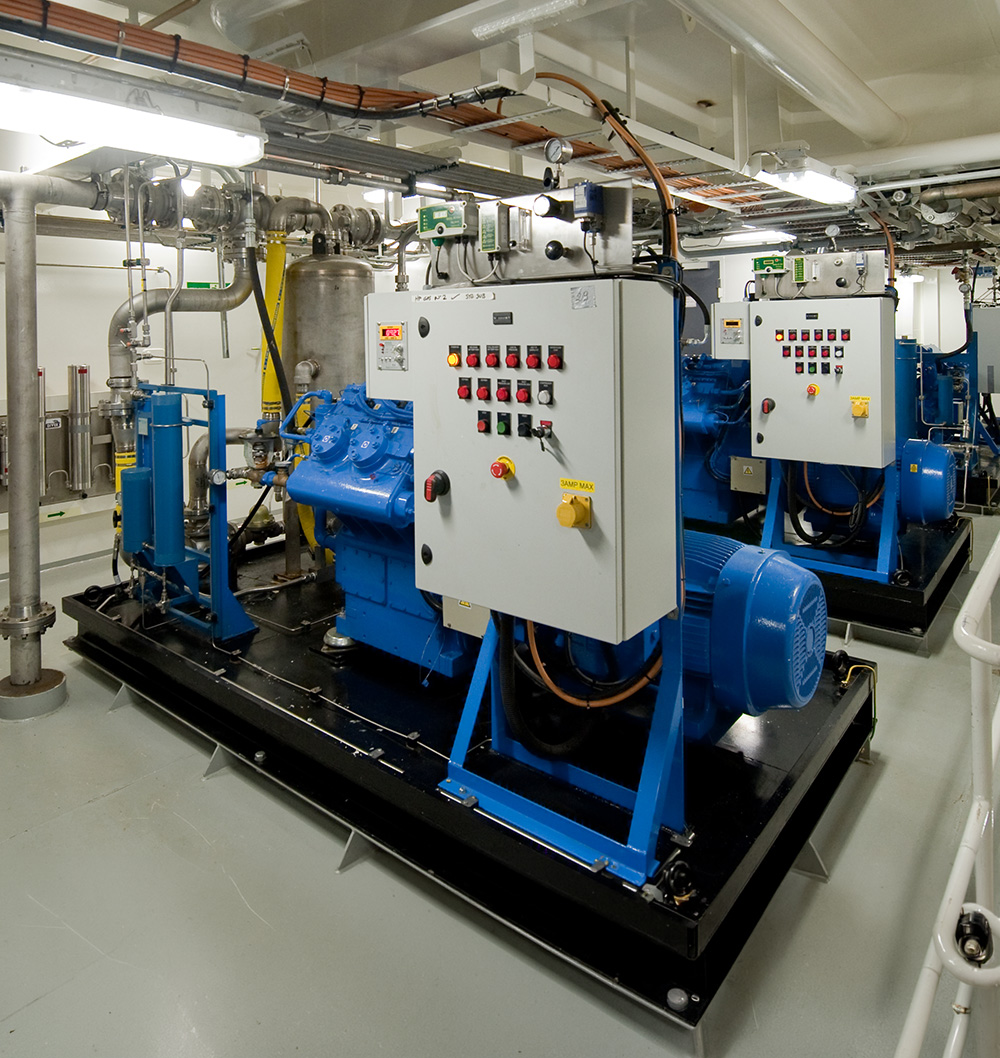

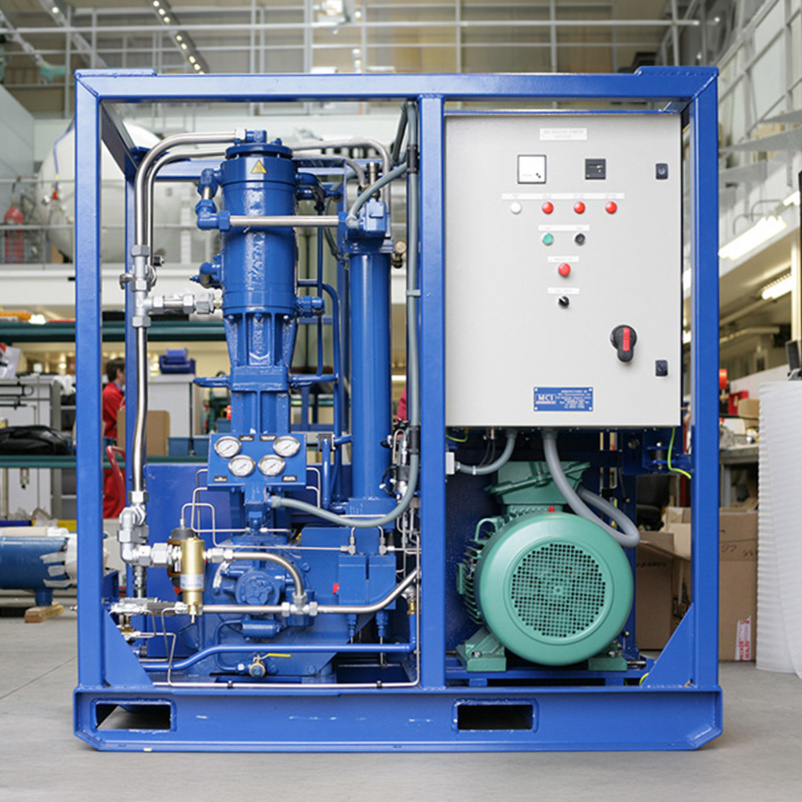

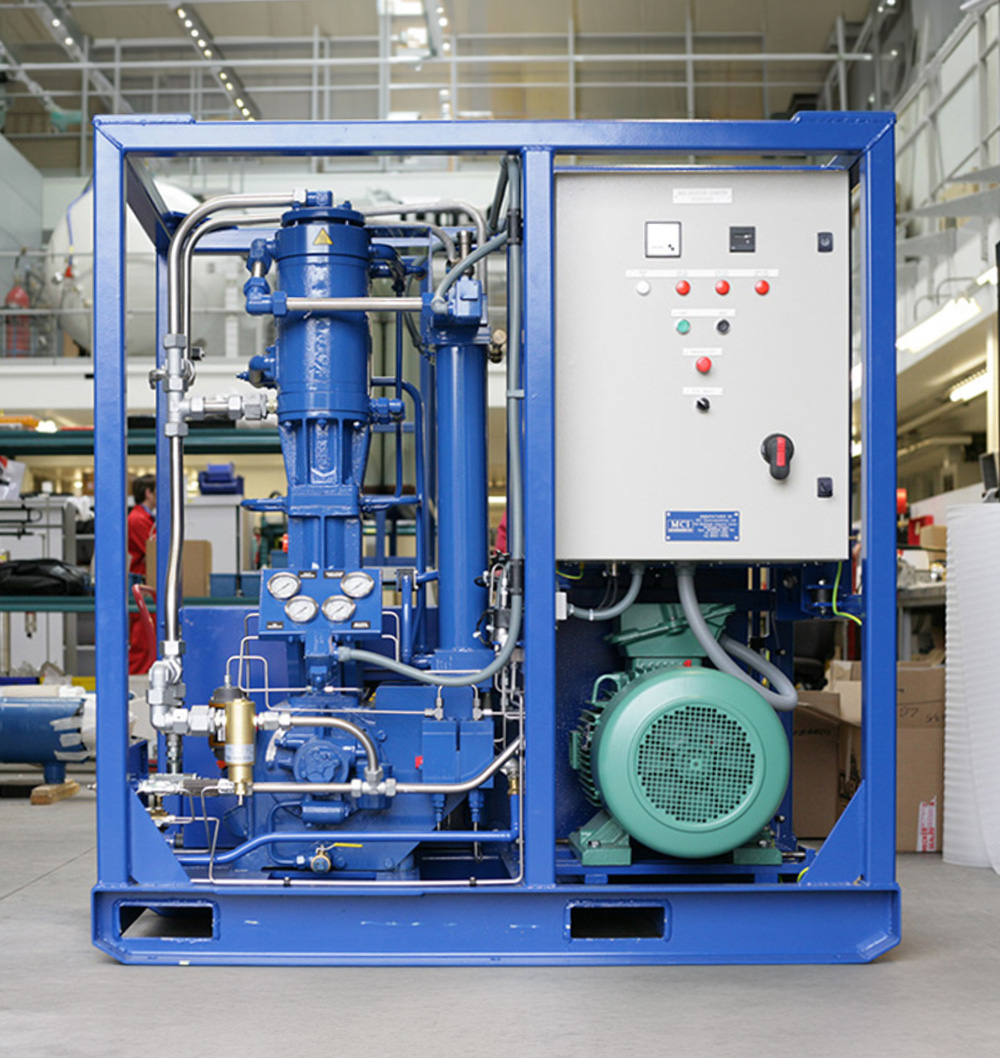

The gaspure chamber gas recovery system purifies contaminated diving chamber or habitat gases and allows chamber gas recovery during operations and decompression rather than venting to atmosphere.
Helipure membrane gas separation systems
Utilising membrane separation technology, the Helipure system allows the removal of nitrogen, oxygen and argon from reclaimed chamber gas. These systems have mainly been used within large industrial complexes for the separation of natural gas. JFD developed this technique to produce a compact, low cost unit for the purification of helium to compliment its existing range of gas management systems for the commercial diving industry.

Electric Gasmizer diver gas recovery systems
Within the demanding environment of a submarine, Divex Gas Recovery Systems can ensure optimal gas recovery and conservation, enhancing operational efficiency and viability.
The Divex systems capture and recycles exhaled gases, allowing for their efficient reuse within the closed loop environment. This not only enhances operational safety by maintaining precise gas mixtures but also supports extended dive durations by reducing overall gas consumption.
Engineered for high pressure conditions and proven as a trusted solution within the Commercial Saturation Diving industry since 1981, the Divex GasMizer Diver Gas Recovery System offers robust performance and reliability.
After more than four decades, the Divex Gasimizer remains the benchmark in the diving industry and continues to provide dive operators with huge savings on breathing gas costs.
